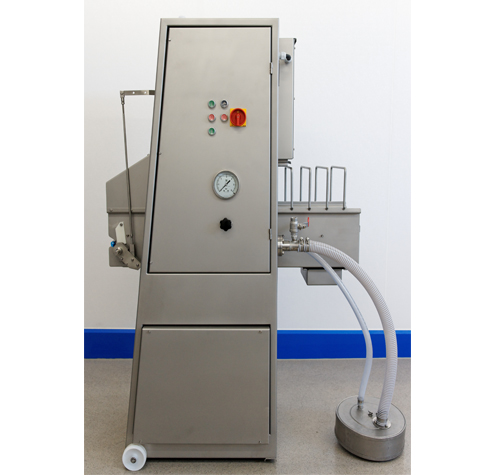

Injector

• Double needles: 24
• Number of needle heads: 1
• Needle diameter: 4.0 mm
• Strokes per minute: 32/64
• Belt advance, adjustable in 6 strokes 15-45 mm
• Max. product height: 200 mm
• Channel width: 270 mm
• Max. capacity per hour: 600-800 kg
• Max. injection rate in one pass (impeller pump IP-45): 35%
• Needle head drive: 0.63 kW
• Brine pump: 0.75 kW
• Dimensions (packed): 135 x 80 x 205 mm
• Approx. net weight: 204 kg.
• Approx. gross weight, with seaworthy crating: 296 kg.

• 24 continuously spraying, spring-loaded needles (12 double needles) 4.0 mm in four rows, for high injection rates with minimal brine pressure, replaceable without tools.
• Two patented pressure-compensation stripper blocks for continuous brine circulation to ensure accurate injection rates and minimize risk of plugged needles.
• Infinitely variable relief valve regulates brine pressure of the rust proof impeller pump IP-45, capacity 45 liters/min with separate drive motor 0.75kW, can be disassembled without tools.
• No tools needed to remove conveyor unit, with rugged, food-safe plastic-link belt, 250 mm wide
• Belt advance: 15-45 mm, mechanically adjustable in 6 steps
