PRODUCTS / Tumbling / VV-3-450-K VV-3-450-K

DETAIL

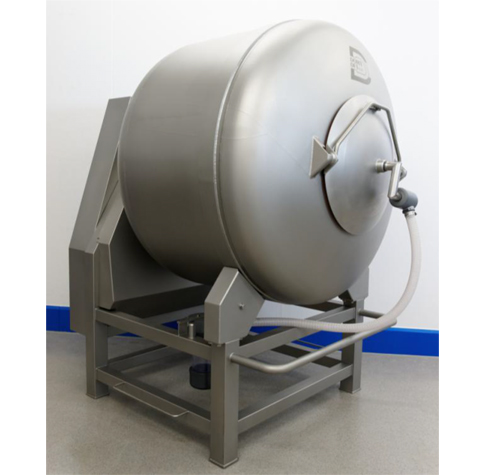

Vacuum tumbler with cooling

SPECIFICATION
  • Drum Volume 1000Lt./litres
  • Max.capacity 450 kg
  • Pump 40 m3
  • Drum drive 0.55-1.8 kw
  • Voltage 400/50 V/Hz
  • Overall width 1216 mm
  • Overall depth 1610 mm
  • Height 1778 mm
  • Drum diameter 1200 mm
  • Net weight 505 kg
FEATURE
  • Drum rotates horizontally and has 3 points support drum.
  • Use motor and V-Belt drive.
  • 40 m3 pump consisting of a pump Dust and air and water filters, silencer valves available.
  • Variotronic control system 1RF
  • With cooling system Temperature controller And switch on and off the pump
