PRODUCTS / Packing / TRC32-20
TRC32-20
DETAIL

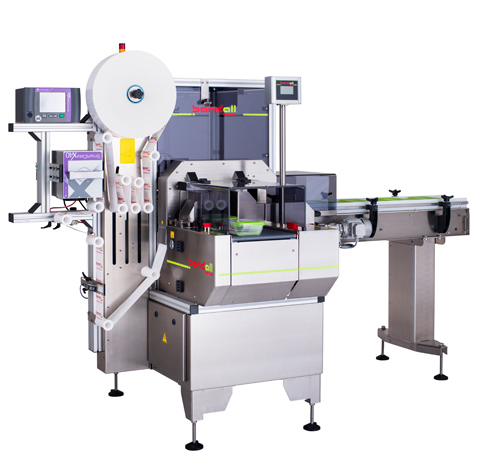

Automatic banding
SPECIFICATION- Arch size width x height : 320x200 mm.
- Channel width :30/ 42/ 50/ 62/ 77/ 102 mm.
- Band width : 28/ 40/ 48/ 60/ 75/ 100 mm.
- Voltage : 230V/115V
- Frequency : 50 HZ/60HZ
- Required air pressure : 6 bar
- Air consumption : max.50l./min
- Power : 500 watts
- Maximum product height : 150
- Maximum product width : 310
- Standard working height : 900 mm.
- Total standard height : 1607 mm
- Total standard width : 900 mm
- Total length : 1227
- Bundless / min : 18-28
-
Accurate Servo driven technique: The product is transported by the internal conveyor to a fixed position. From this position a servo driven pusher places the product in the banding arch. This is done at a 90 degree angle.
