PRODUCTS / Packing / TRC24-20 TRC24-20

DETAIL

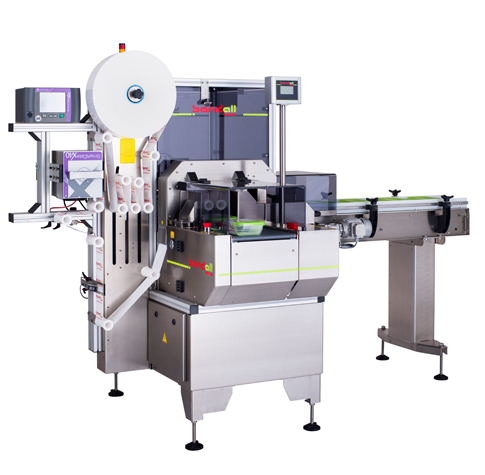

Automatic banding

SPECIFICATION
  • Arch size width x height : 320x200 mm.
  • Channel width :30/ 42/ 50/ 62/ 77/ 102 mm.
  • Band width : 28/ 40/ 48/ 60/ 75/ 100 mm.
  • Voltage : 230V/115V
  • Frequency : 50 HZ/60HZ
  • Required air pressure : 6 bar
  • Air consumption : max.50l./min
  • Power : 500 watts
  • Maximum product height : 150
  • Maximum product width : 310
  • Standard working height : 900 mm.
  • Total standard height : 1607 mm
  • Total standard width : 900 mm
  • Total length : 1227
  • Bundless / min : 18-28
FEATURE
    Accurate Servo driven technique: The product is transported by the internal conveyor to a fixed position. From this position a servo driven pusher places the product in the banding arch. This is done at a 90 degree angle.
