PRODUCTS / Packing / TRL40-25
TRL40-25
DETAIL

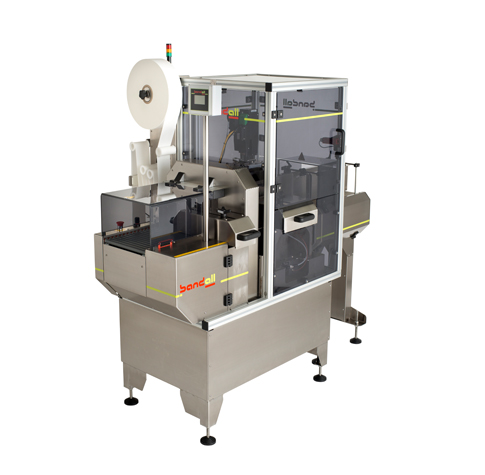

Automatic banding
SPECIFICATION- Arch size width x height : 400x250 mm.
- Channel width :30/ 42/ 50/ 62/ 77/ 102 mm.
- Band width : 28/ 40/ 48/ 60/ 75/ 100 mm.
- Voltage : 230V/115V
- Frequency : 50 HZ/60HZ
- Required air pressure : 6 bar
- Air consumption : max.50l./min
- Power : 500 watts
- Maximum product height : 200
- Maximum product width : 385
- Standard working height : 900 mm.
- Total standard height : 1607 mm
- Total standard width : 1100 mm
- Total length : 1551
- Bundless / min : 18-28
-
Straight line conveyband-convey: The infeed and outfeed conveyors are perpendicular to each other and to the banding arch. A double pusher system ensures accurate positioning of the products in the banding arch. The choice of the TRL model depends on the specifications particular to your processing situation.
