PRODUCTS / Washing / GEWA 3800 B Plus GEWA 3800 B Plus

DETAIL

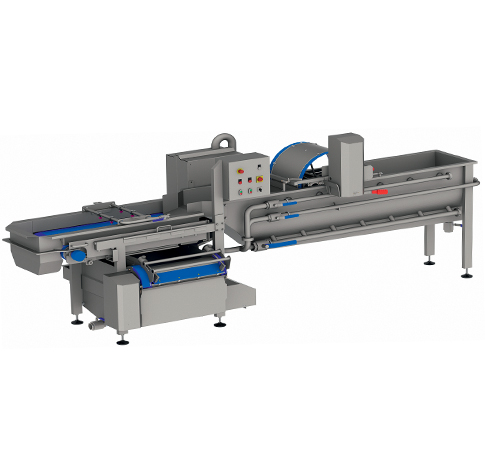

Continuance washing machine with belt outfeed

SPECIFICATION
  • Length : 4209 mm
  • Width : 1388 mm
  • Height : 1675 mm
  • Infeed / feeding height : 1232 mm
  • Discharge / outfeed height : 759 mm
  • Total power : 7.7 kW
  • Voltage : 3~400 VN/PE
  • Frequency : 50 Hz
  • Total volume : 814 l
  • Water discharge : 2x 2"
  • Fresh water connection : 2x 3/4 (GEKA)
  • Weight : 590 kg
FEATURE
  • Extremely delicate products or big leaves will be neatly discharged from the washing machines through a hygienically conceived belt conveyor with a stainless steel drum motor drive. Air knives are strategically placed on top and below the conveyor belt discharge to separate the product completely from the belt. Air knives are provided with air by an integrated blowing device. For cleaning, all side guides can be tool less and quickly removed. The belt can be released by simply tilting up the drum motor. This open structure of the conveyor frame makes cleaning quick and easy.
