Circular Blade Cutting Machine.

• Direction of cuts : Horizontal + Vertical
• Diameter of circular blades (MM) : 200
• Maximum pprocessing height(MM) : 100
• Cutting width (processing width) (mm) : 370/300
• Infeed conveyor (mm) : 1390x425
• Output conveyor (mm) : 650x425
• Cutting speed (m/min) : 25 (other cutting speeds upon request) , (depending on product)
• Electrial consumption (kW) : 1.3
• Electrical connection : 3 AC - 400V – 50 Hz(other voltages upon request)
• Overall dimension BxHxT (mm) : 1530x1400x2420
• Weight (kg) : 385 (with circular blade distance 8 mm and diameter of blades 20 mm)

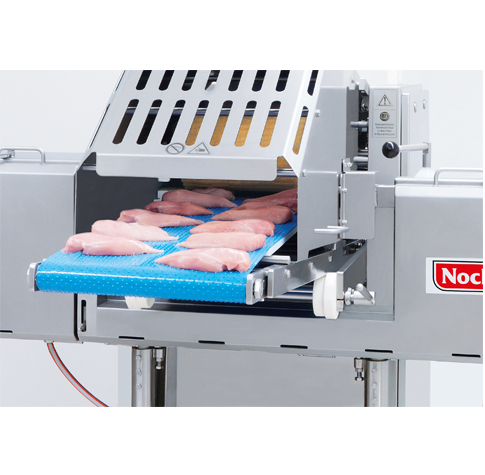

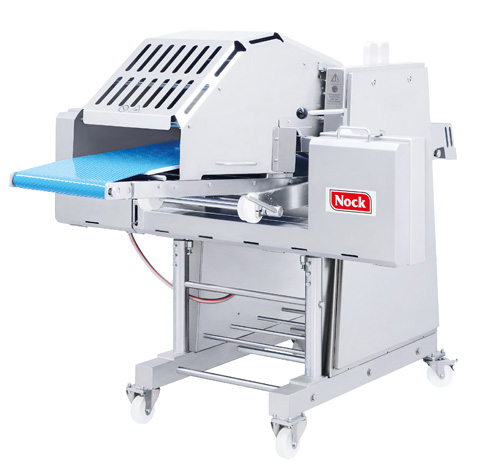

• NOCK machine from Germany, model CORTEX CB435/4E HVC (Horizontal Vertical Cutter) is suitable for horizontally slicing skinless chicken breast for wanted thickness and vertically slicing chicken breast to strips. Either function can be chosen. Horizontal slicing can be minimum 1 mm and vertical slicing can be minimum 8 mm. The machine is user friendly, robust and has lowmaintenance cost.
