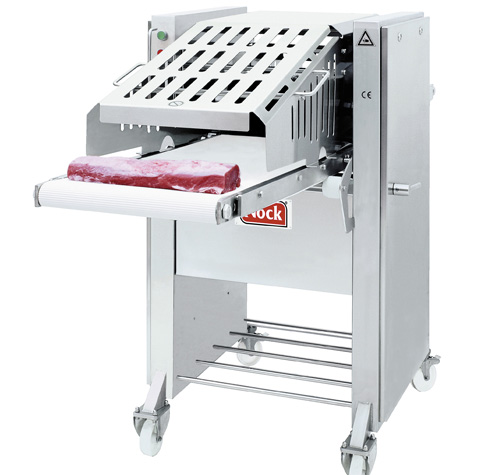

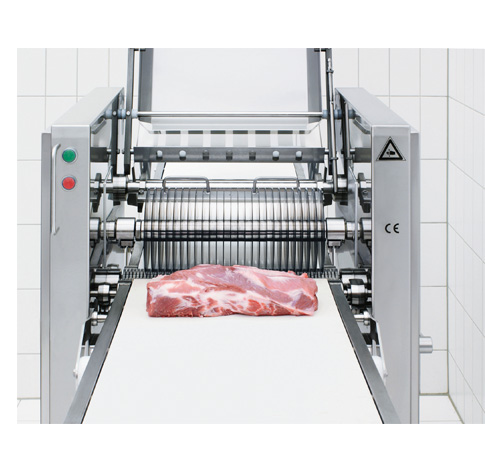

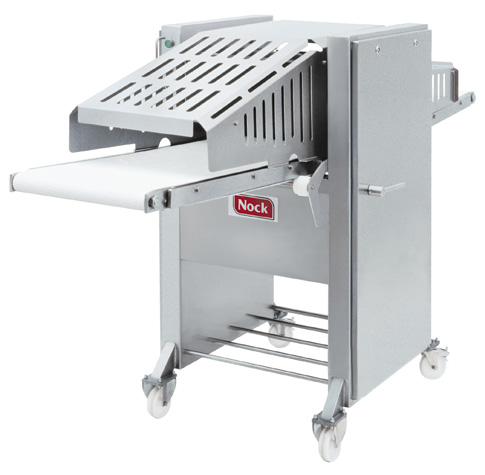

Circular Blade Cutting Machine.

• Direction of cuts : Vertical
• Diameter of circular blades (MM) : 200/300
• Maximum pprocessing height(MM) : 70/120
• Cutting width (processing width) (mm) : 400
• Infeed conveyor (mm) : 1170x490
• Output conveyor (mm) : 1170x490
• Cutting speed (m/min) : 18 (other cutting speeds upon request)
• Electrial consumption (kW) : 1.5
• Electrical connection : 3 AC - 400V – 50 Hz(other voltages upon request)
• Overall dimension BxHxT (mm) : 820x1300x2450
• Weight (kg) : 260 (with circular blade distance 8 mm and diameter of blades 20 mm)

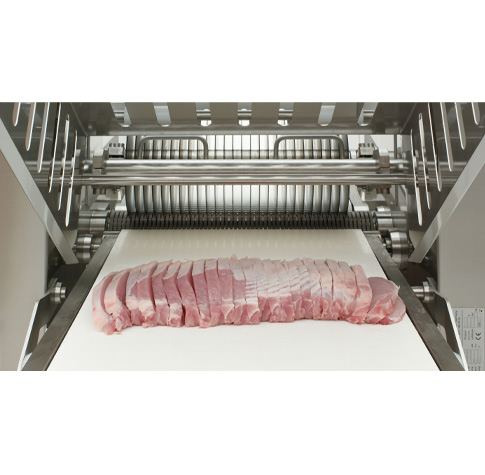

• The Cortex CB495/5K SLICER. It is the top-selling NOCK circular blade cutting machine with years. The machine is very often used with a blade distance of 12 – 18 mm to cut huge quantities of steaks where a throughput of more than 5 tons per hour can be achieved. Within minutes it can be re-equipped to cut strips with a second blade shaft.
