Model :
Series AG |
|
| |
|
| |
|
|

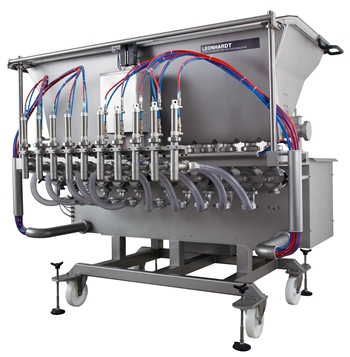

เครื่องบรรจุ รุ่น A6
Temperatur range: 2-90 •c
Dosing ranges: Total range: 10-6.600 ccm per cycle and dosing position
Dosing capacity: max .20-50 cycles/min/position,depending on product and dosing volume.
Dosing position: 1-12
Piston drive: servodriven
Rotary valve: drive pneumatic
Volume adjustment: The stroke length and speed of the servo driven dosing cylinders is
adjustable on the Touch Screen OP. Memory for maximum 100
different product programs
Dosing system: Dosing cylinder with rotary valves.
Stainless steel pistons with O-rings or special coils resistant to
high temperatures or sugar containing product
• Applications: Soups, sauces, dressings, gulasch with particles upto 30x30x30 mm,
stews, delicatessen salads, ready meal components like mashed potato
red beet, sauerkraut, vegetable mixes, marmelades, jams, honey etc.
(homogenous and pumpable, without separation)
• Combinations Traysealers (single and multiple lanes), thermoformers, pouch
packaging machines and flowwrappers, cartoning machines and
conveyorlines for jars, cans, buckets and cups
• Synchronisation: interface with packaging lines, line controls, Fill-on-Demand,
interface with checkweighers, tendency controls
|
|
|
|
|
| |
|
|
|
 |
|
 |
